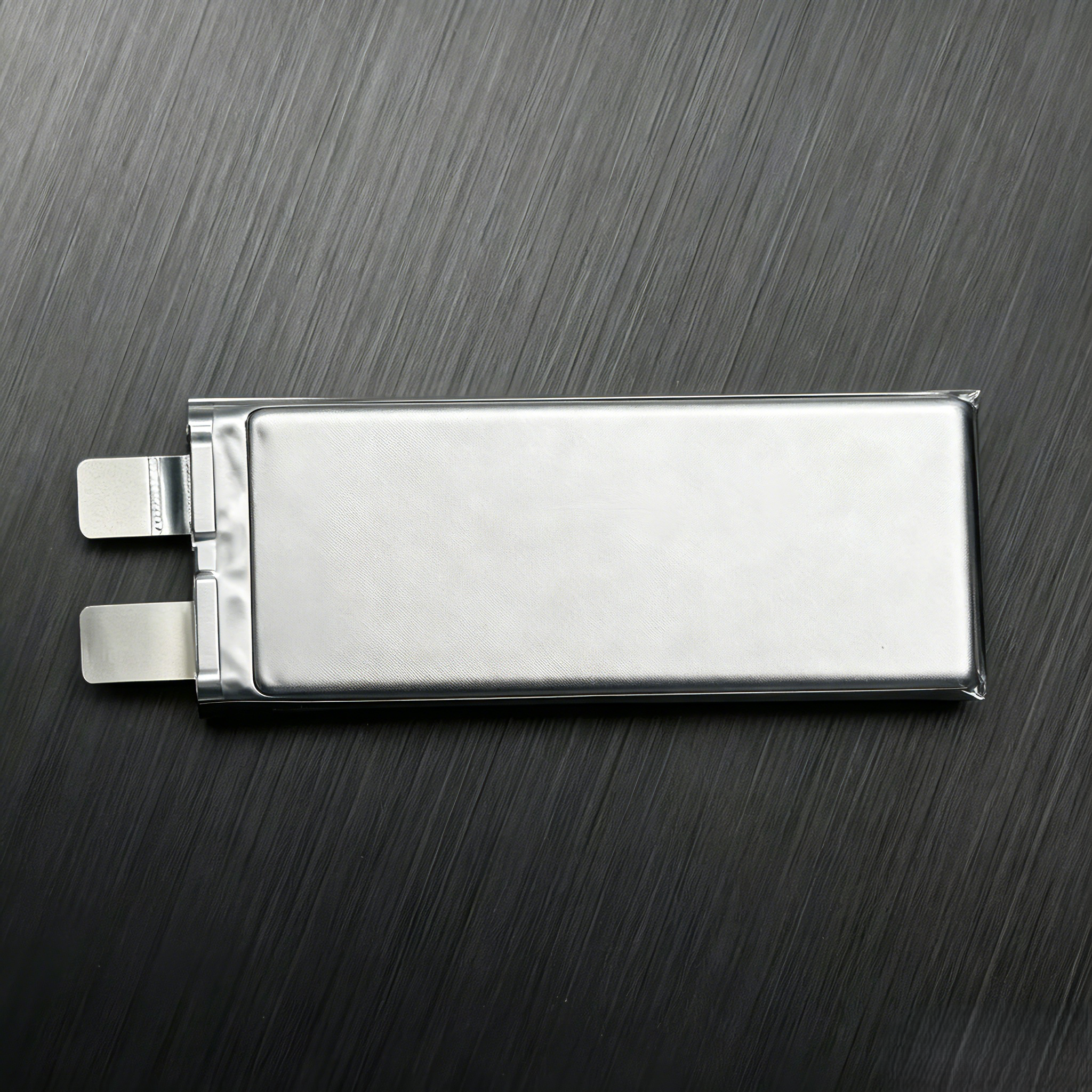

Ultra high energy density NCM/Li lithium-ion battery cell delivering up to 500Wh/kg energy density, with 20Ah capacity and lightweight design for advanced UAV applications.
Model: LP8059142N20
Battery Chemistry: NCM/Li Lithium-Ion
Nominal Capacity: 20.0Ah
Nominal Voltage: 3.80V
Maximum Charge Voltage: 4.35V
Energy: 76.0Wh
Energy Density: 500Wh/kg
Battery Type: Ultra High Energy Density Lithium-Ion Battery Cell
Cell Dimension: 8.0 × 59 × 142mm (T×W×L)
Average Weight: 152g
Maximum Continuous Discharge Current: 2~3C
Pulse Discharge Current: 5C (10s)
Maximum Charge Current: 0.3C
Application: Designed for advanced UAVs, robots, and portable power systems
Features
Ultra High Energy Density Performance
With an energy density of up to 500Wh/kg, this NCM/Li lithium-ion battery cell provides outstanding energy-to-weight performance, helping UAV platforms achieve extended operation time with reduced system weight.
Lightweight Battery Cell Design
With a weight of approximately 152g and 20Ah capacity, this battery cell provides an optimized balance between energy output and lightweight design.
Advanced Battery Material Technology
The NCM/Li chemistry enables high energy density performance and supports next-generation lithium battery applications requiring improved energy efficiency.
Stable Power Output Capability
Supporting 2~3C continuous discharge and 5C pulse discharge, the cell delivers reliable power output for professional UAV platforms.
Flexible Battery Integration Solutions
The battery cell supports customized battery pack development, including capacity configuration, structural design and BMS integration according to customer requirements.
Applications
Designed for a wide range of high-performance applications, including:
✅ Industrial UAV Applications
✅ Professional Drone Systems
✅ Agricultural & Inspection Drones
✅ Robotics and Autonomous Platforms
✅ Electric Mobility Solutions
✅ Customized Battery Pack Development
OEM support available with customized battery solutions and sample evaluation.
